LIFEBOX50 TRANSPORT CONTAINER SERIES ALL SIZES
LifeBox50 is intended for the protection, transport and temporary isolation of temperature-sensitive content such as casting materials, saline and similar.

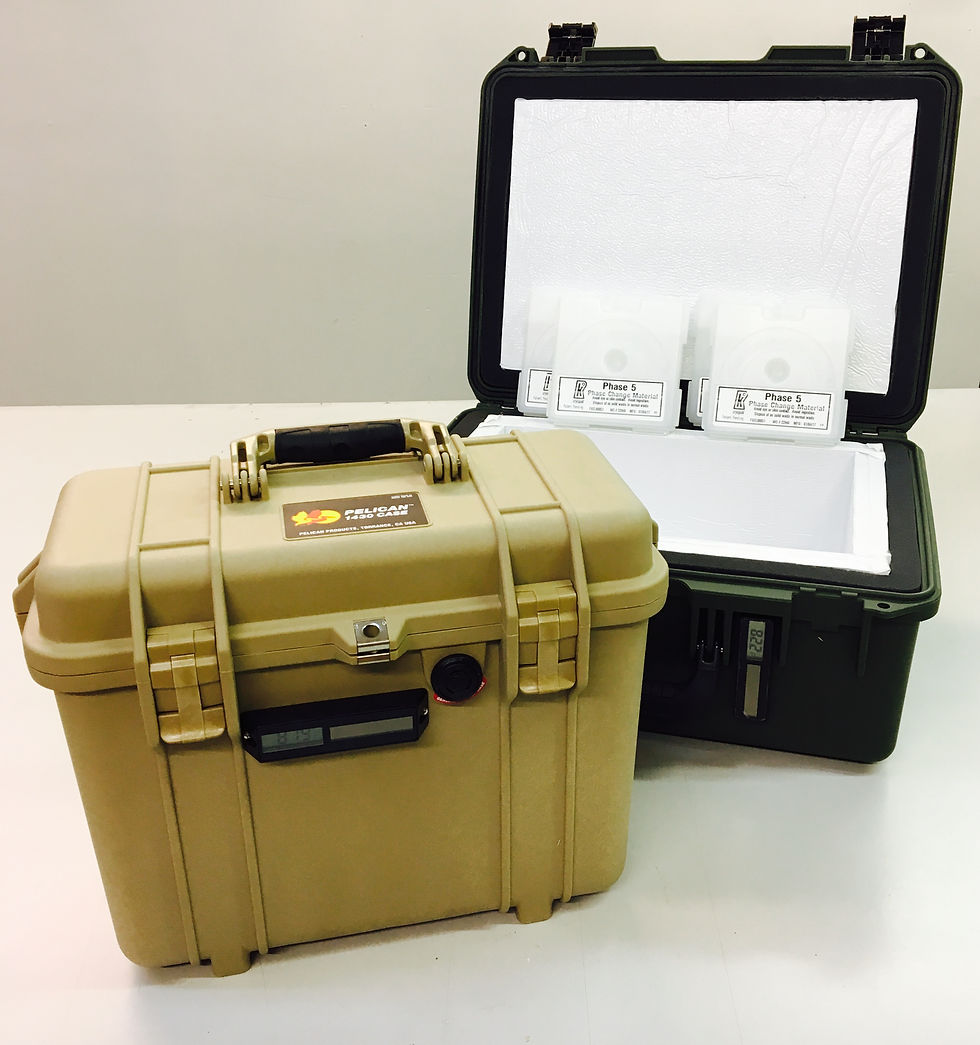

The Responder is not restrained by temperature changes over time. The LifeBox50 is able to maintain its core temperature for unprecedented durations in the most extreme ambient conditions. We combine superior insulation with rugged storm cases for protection. Each unit also comes equipped with a surface mounted digital thermometer display for payload temperature monitoring. Solar/Battery powered. We then include several solid phase change cold packs. (4 x 4 x 1 in ea.)
APPLICATIONS:
- COLD THERAPY ITEMS: IVs, COLD PACKS, ETC.
- TEMPERATURE SENSITIVE MEDICATION STORAGE & TRANSPORT
- TEMPERATURE SENSITIVE EQUIPMENT STORAGE (AEDs)
- MANY OTHERS
PRODUCT INFO
Colors: Black, Olive Drab, Tan, Orange and Yellow
Sizes: XSmall, Small, Standard, Large
SMALL LB50 NSN#: 8145 01 596 4629
STANDARD LB50 NSN#: 6545 01 596 4015
Patents Applied For.
TWO NEW SIZES AVAILABLE:
LB50 BRIEFCASE / Part # 6001023 - INNER DIMENSIONS 8.25 x 3.25 x 13.5in
LB50 XSMALL / Part # 60001022 - INNER DIMENSIONS 6.75 x 3.5 x 10.5in
SPECIFICATIONS
-
LifeBox50 Specs Standard Large Small Payload Capacity (Liters) 10.3 16.2 4.3 Payload Dimensions (inches) 9 x 5 x 14 10.5 x 6.5 14.5 11 x 3 x 8 Tare weight (lbs) 12 19 9 Outer Container Rugged Case Rugged Case w/wheels and Tow Handle Rugged Case w/Carry Strap Insulator Carbon Aerogel Vacuum Panels Carbon Aerogel Vacuum Panels Carbon Aerogel Vacuum Panels Before Use Prepare heat/cool source Prepare heat/cool source Prepare heat/cool source
-
FEATURES AND BENEFITS
-Equipped with digital thermometer display, for payload temperature monitoring. Solar/Battery powered.
-Carbon Aerogel panels with R50 insulation rating.
-Durable Pelican Case protects payload material.
- Provides 40 – 50 hours of protection for the temperature-sensitive content.
MODELS
Model
Characteristics
Sizes [Exterior]
LifeBox 50 Standard
Black
19.20”x15.20”x7.30” 7.8 lbs
LifeBox 50 Standard
Olive Drab
19.20”x15.20”x7.30” 7.8 lbs
LifeBox 50 Standard
Tan
19.20”x15.20”x7.30” 7.8 lbs
LifeBox 50 Small
Black
16.40”x8.71”x13.5” 6.5 lbs
LifeBox 50 Small
Tan
16.40”x8.71”x13.5” 6.5 lbs
LifeBox 50 Small
Yellow
16.40”x8.71”x13.5” 6.5 lbs
LifeBox 50 Small
Orange
16.40”x8.71”x13.5” 6.5 lbs
LifeBox 50 Small
Olive Drab
16.40”x8.71”x13.5” 6.5 lbs
LifeBox 50 Briefcase
Black
18.2”x13.9”x6.9” 7 lbs
LifeBox 50 Briefcase
Yellow
18.2”x13.9”x6.9” 7 lbs
LifeBox 50 Extra Small
Yellow
14.2”x11.40”x6.5” 4.9 lbs
LifeBox 50 Extra Small
Black
14.2”x11.40”x6.5” 4.9 lbs
